Table of Contents

Notes

390nm LED

Shortpass Filter / UV 400nm

Fluorescent Target

PDMS polymer binder

400nm longpass filter

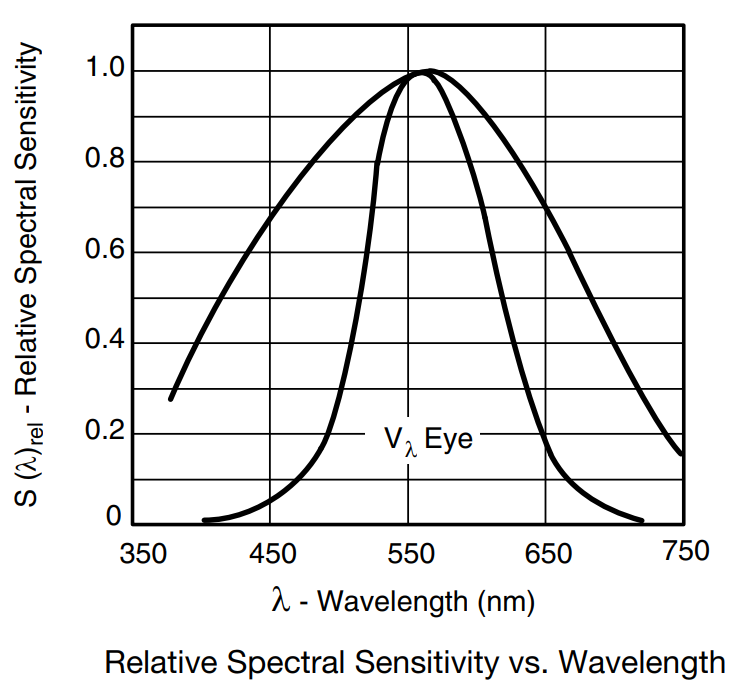

Optical Sensor

Making Rubene Samples

Doping rubrene into PDMS

(e.g., Sylgard 184 or a similar PDMS variant like Sylcap 284).

Most published oxygen-sensor designs with rubrene start in a relatively narrow doping range to balance brightness and avoid dye aggregation or self-quenching.

1. Typical Doping Range

Why This Range?

  1. Fluorescence Brightness vs. Self-Quenching
    • Rubrene is highly fluorescent, so even a small concentration can yield significant emission.
    • Above roughly 0.1–0.2 wt%, many organic dyes (including rubrene) begin to exhibit “concentration quenching,” where the emission drops due to exciton–exciton annihilation or dye aggregation.
  1. Cost and Solubility
    • Rubrene can be expensive, and it’s only moderately soluble in typical organic solvents. Over-saturating the mix will result in precipitates, optical scattering, or inhomogeneous films.
  1. Oxygen Diffusion
    • PDMS is highly oxygen-permeable, which is great for oxygen sensing but also means the dye gets quenched quickly. Going too high in dye content doesn’t necessarily improve sensitivity—it may just cause more self-quenching without improving the sensor’s performance.

2. Practical Mixing Tips

  1. Pre-Dissolve the Rubrene
    • Dissolve rubrene in a small volume of an organic solvent (toluene or chloroform) at a known concentration (e.g., 1–10 mg/mL).
    • Slowly add this solution to the PDMS base resin while stirring. This helps achieve more uniform dispersal.
  1. Degas
    • After mixing, place the solution under vacuum to remove both solvent and air bubbles.
    • If you have a two-part system (base + curing agent), you might do a preliminary degassing before adding the curing agent, then a final degassing after thoroughly mixing in the catalyst.
  1. Curing
    • Many PDMS systems can cure at room temperature in 24–48 hours or at 60–70 °C for a few hours.
    • Try not to exceed 120 °C or keep the mixture at high temperature for too long—rubrene will degrade over time if both heat and oxygen are present.

3. Considerations for a 450 nm LED

  1. Absorption Spectrum of Rubrene
    • Rubrene absorbs sufficiently at ~450 nm to fluoresce orange.
    • Verifying the absorbance in your final PDMS film to ensure you’re not “under-absorbing.”
  1. Film Thickness
    • If the film is too thick or dye concentration is too high, inner regions might not be excited properly due to light attenuation.
    • A thickness of ~0.1–1 mm is typical for sensor films, but this depends on optical design and the LED intensity.
  1. Sensor Calibration
    • Once cured, measure the fluorescence intensity (and/or lifetime) under different known oxygen concentrations to build a calibration curve using the Stern–Volmer relationship.

4. Adjusting the Ratio Over Time

Bottom Line

A good starting point is 0.01–0.1 wt% rubrene relative to the PDMS base. Begin on the lower side (e.g., 0.02–0.05 wt%) to avoid aggregation, see how bright the sensor is at 450 nm excitation, and adjust accordingly. Once you have a homogeneously dispersed rubrene-PDMS film, you can calibrate its oxygen response using the Stern–Volmer equation and fine-tune the formulation to optimize fluorescence intensity versus oxygen quenching sensitivity.

pH optode sensor notes
